Cost to Replace Electrical Panel in Ontario
The electrical panel gives life to your home. It powers your appliances, your light fixtures, and entertainment systems. A properly designed electrical system should deliver uninterrupted power that never fails. But if you have an older home, it may be time to consider replacing your electrical panel.
Get Free Quote: +1 866 565 5427Older homes have their charm, but generally speaking, their fuse boxes or electrical panels leave something to be desired. Some only offer 60 amps of service, while the standard for modern homes is at least 200 amps of service. An overloaded panel can be a danger to the people living in the home, and a terrible inconvenience.
Upgrading your electrical panel is a good idea especially if you've had your unit for over 25 years. Here's a more in-depth look at the numbers behind electric panel costs, courtesy of the friendly and expert electricians at KoljiBros Electrical.
Electrical Panel Replacement Costs
Average Costs in Ontario
Signs You Need to Replace Your Electrical Panel
- Your circuit breakers are constantly flipping or fuses are blowing because your electrical lines are overloaded
- Your service is at 60 amps instead of at least 100 amps or the modern standard of 200 amps
- You find yourself having to unplug one appliance to run another, otherwise you risk blowing a fuse or flipping a breaker
- The wires running to and from your panel look incredibly messy or unorganized
- You smell burning or see scorch marks near your panel
- Your panel uses fuses instead of circuit breakers
You also need to determine what size of electrical panel is suitable for your home. Electricians talk about this in terms of "electrical load" so we know how to give you exactly what you need. That's why an in-home consultation with a professional electrician at KoljiBros Electrical is so important.
Appliances That May Require a Panel Upgrade:
Electrical Panel Replacement
The average cost of replacing an old electrical panel with a new one of the same capacity costs the average Canadian homeowner about $3,200, although that range could be anywhere from $1,025 to more than $12,800. But everything depends on how big the panel is and how much power your home needs.
For example, the power requirements for a small bungalow will be dwarfed by the needs of a luxury home of more than 4,000 square feet.
The other part of the job you'll have to consider is updating old wiring. A new panel means your old wires may not be compatible.
For rewiring, you can expect to pay anywhere between $8 to $10 per linear foot, which for the average Canadian home amounts to somewhere between $3,850 to $10,250 if the whole home needs to be redone. But this can vary depending on your situation.
And finally, many people like to upgrade their old electrical switches and outlets for increased capacity, efficiency and aesthetics. If you have a professional electrician do this swap for you, expect to pay anywhere between $130 and $260 per switch or outlet.

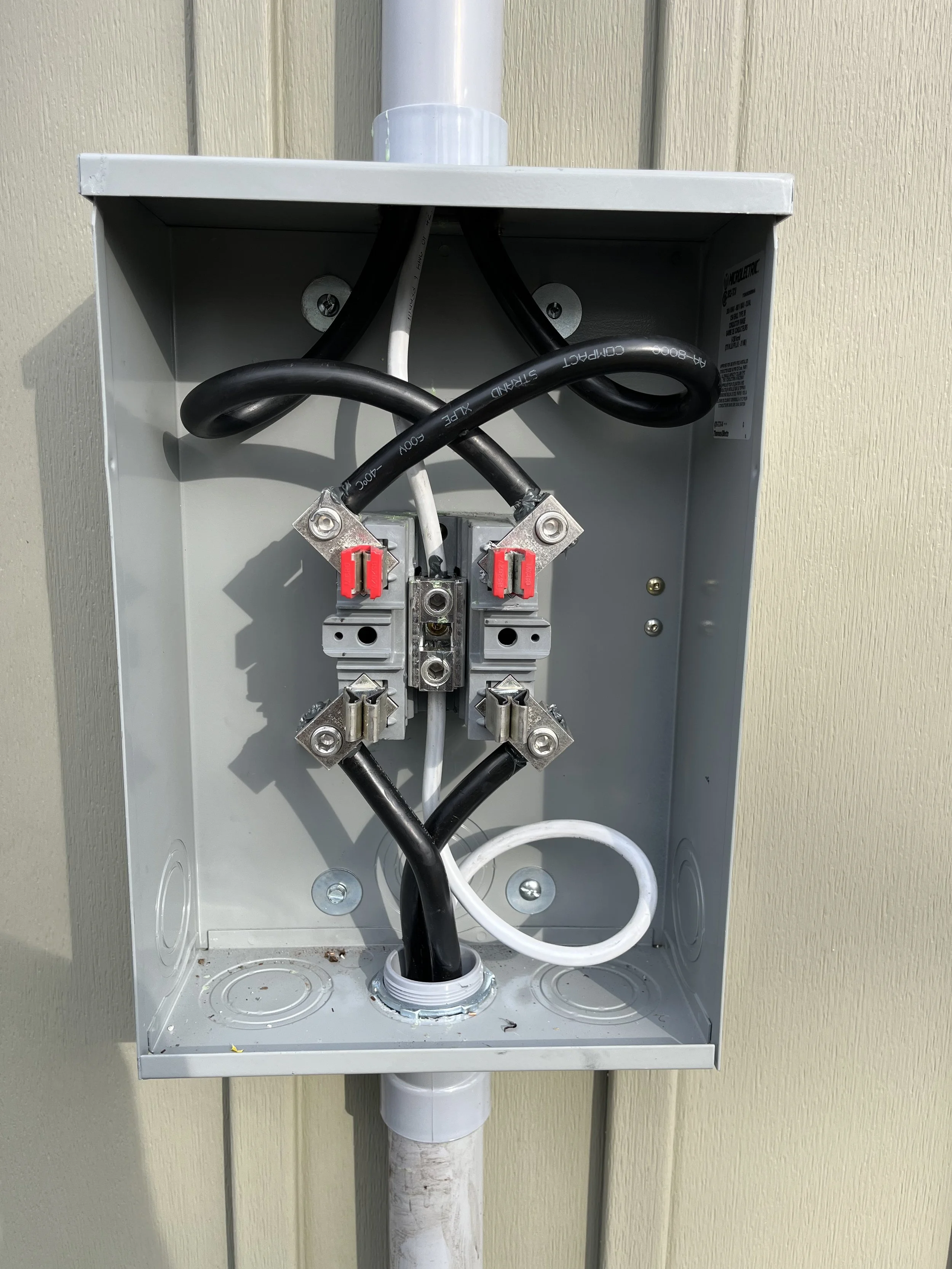

Cost to Upgrade Electrical Panel to 200 Amps
So what's the cost to upgrade to a 200 amp service? The minimum standard for electrical amps today is 200 amps. If your panel's capacity is less than 200 amps, you are not up to code and run the risk of overloading your home's electrical system. This means that it's time to upgrade.
If you need to double your amperage from 100 to 200 amps, then you should be budgeting approximately $1,400. However, if you want to take the next step and expand for future coverage, you'll want to consider a 400 amp panel.
If you do decide to go this route, then you can expect to pay about $5,125 for this service done by a professional and certified electrician.
200 Amp Upgrade Cost Breakdown

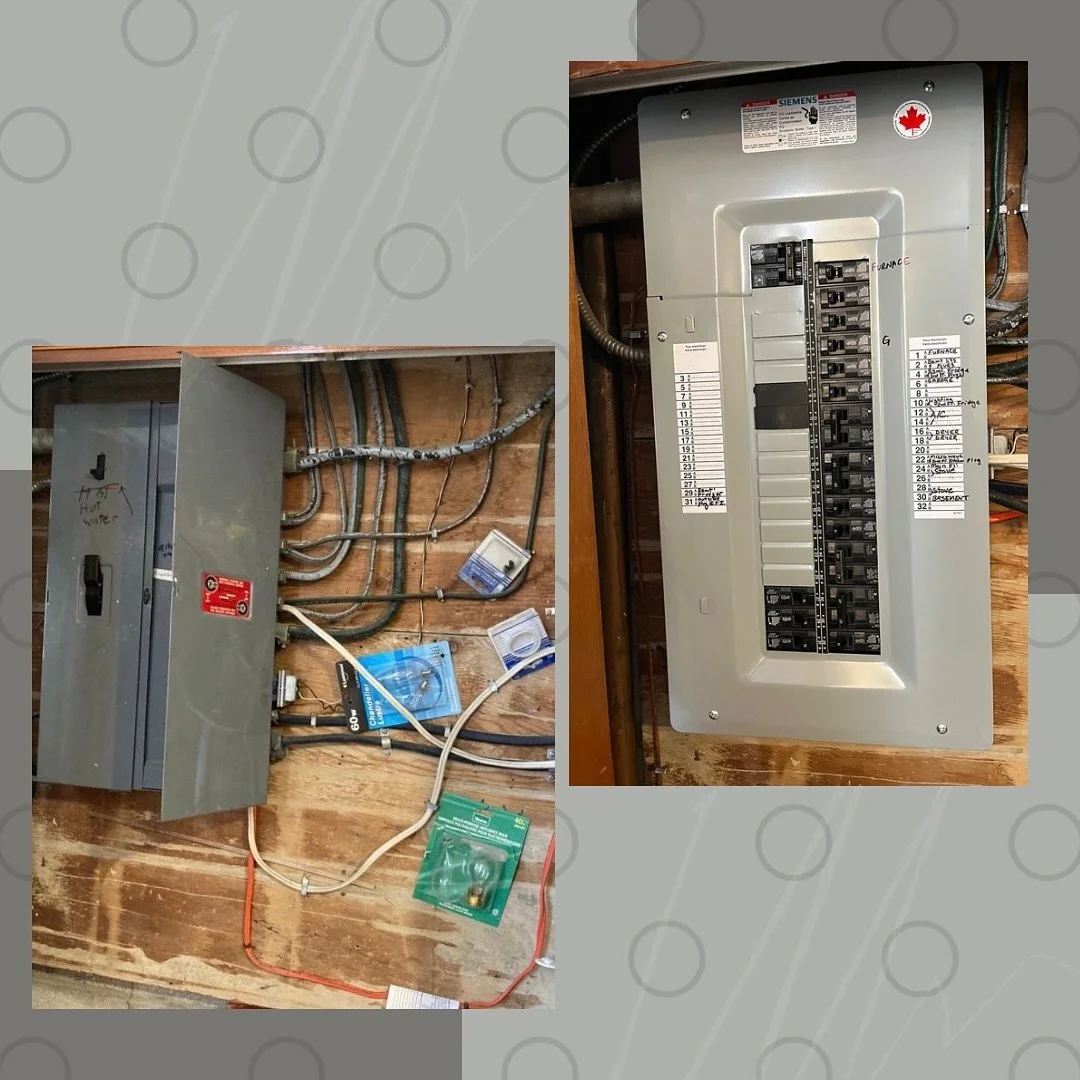

Cost to Replace Fuse Box With Breaker Panel
The fuse box was the original electrical hub of homes up until about the 1980s. Fuses are disposable and need to be replaced every time they burn out, and it's getting harder and harder to find fuses in hardware stores with the rising prevalence of circuit breaker panels.
If you need to switch your fuse box to a circuit breaker, you can expect to pay anywhere between $1,900 and $5,800 — depending on the size of your desired panel, amperage and any rewiring that needs to take place.
Also, keep in mind that with a fuse box replacement, your electrician will need to contact the city to temporarily shut off your power while the swap takes place.
Cost to Replace Single Breaker Switch or Fuse
If you don't mind a little DIY handiwork around the home, then here's something you can do on your own with your electrical panel. Often you need to replace fuses and every so often you find it necessary to replace a circuit breaker.
The good news is that it's pretty easy to do. A standard fuse can cost anywhere from $6 to $50 while circuit breakers are more expensive, ranging from $190 to $260.
So why are fuses so much cheaper? The install time is seconds. It's like screwing in a light bulb. Replacing a circuit breaker however is a bit more of an advanced process, which includes disconnecting and reconnecting wires before flipping it back on.
If you don't feel comfortable tackling this on your own, don't hesitate to contact a professional electrician like the ones at KoljiBros Electrical for help.
Main Circuit Breaker Replacement Cost
The main circuit breaker is the switch usually located on the top of the electrical that cuts off or allows power to the entire panel. It's an important part to have for renovation and safety purposes.
But don't worry, despite its starring role in your circuit panel, it doesn't cost any more to replace than a standard circuit breaker, meaning you're looking at a cost of around $190 to $260.
Quick Reference: Panel Upgrade Pricing
100A to 200A Upgrade
Most common residential upgrade. Doubles your electrical capacity for modern demands.
Fuse to Breaker Conversion
Replace outdated fuse box with modern circuit breaker panel for safety.
Full Panel Replacement
Complete replacement of same-capacity panel. Range: $1,025 - $12,800.
400A Panel Upgrade
For larger homes or future-proofing. Ideal for EV chargers + home additions.
